Precision Punch Tooling
Sundi manufactures precision punch tooling and press punches for stamping dies, forming tools, and custom production requirements. Parts can be made from drawings, samples, or application specifications, with material, fit, edge condition, and inspection points reviewed before quote.
-
Drawing-based punch tooling for stamping, forming, and press applications.
-
Tool steel, HSS, powder steel, and carbide options matched to working conditions.
-
Critical dimensions, clearance notes, edge finish, and surface finish checked before shipment.
Tooling Scope
Press punches, custom punches, stamping punches, and related punch tooling components.
Drawing-Based Review
Geometry, material, coating, tolerance notes, quantity, and working condition checked before quote.
Process Support
Wire EDM, precision grinding, profile grinding, finishing, and machining support for custom profiles.
Inspection Ready
Punch tip geometry, body fit, edge condition, surface finish, and drawing conformance reviewed.
CHOOSE THE RIGHT TOOLING ROUTE
Precision Punch Tooling
- Strictly Confidential (NDA Supported)
Most punch tooling requests start with a drawing, a worn sample, or a press application problem. These product directions help buyers identify whether the requirement is mainly about material, punch shape, forming method, cutting station, or related die components before sending details for review.

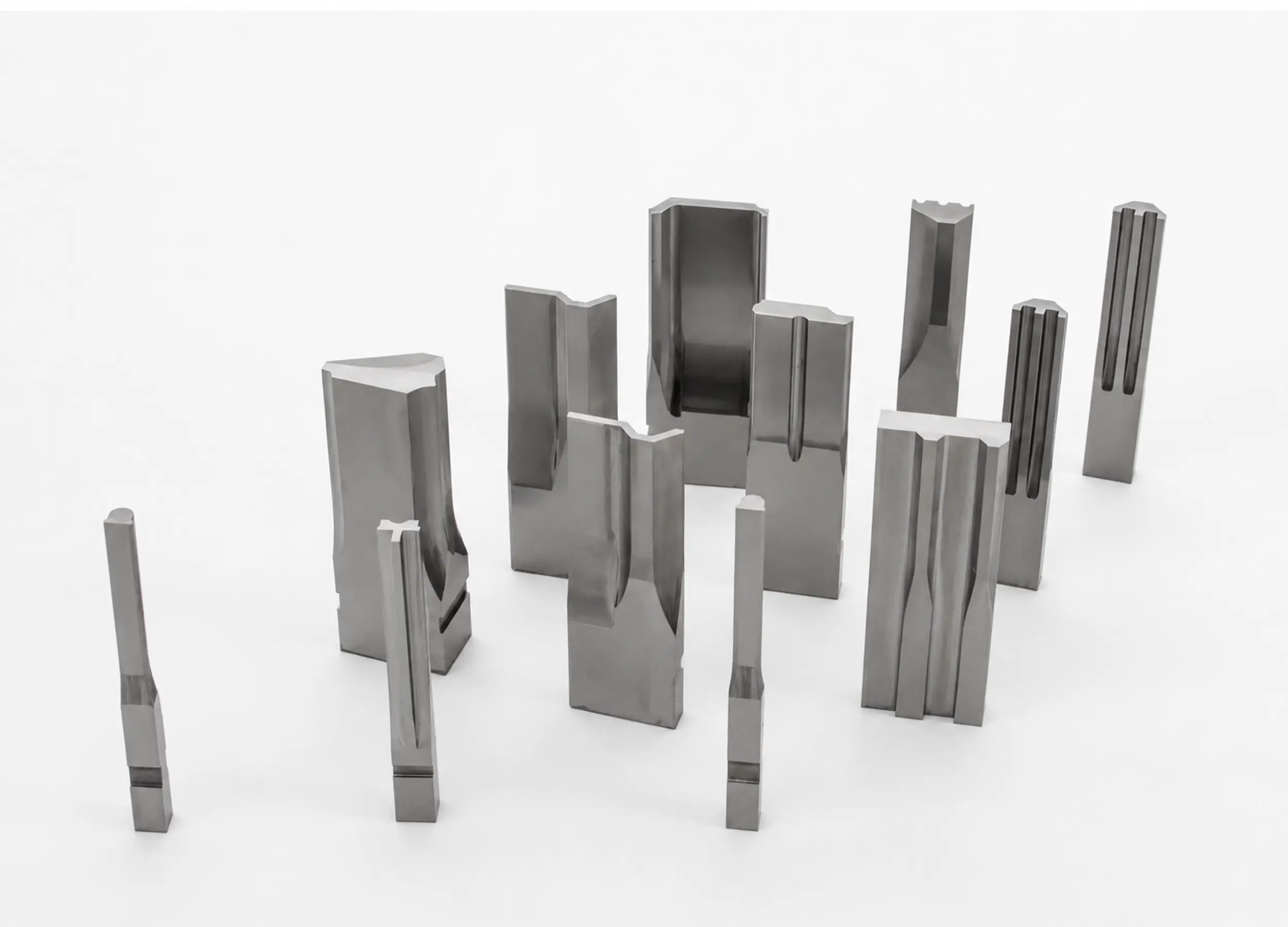

Tungsten Carbide Punches and Dies
Wear-resistant carbide tooling for high-volume stamping and abrasive production conditions.

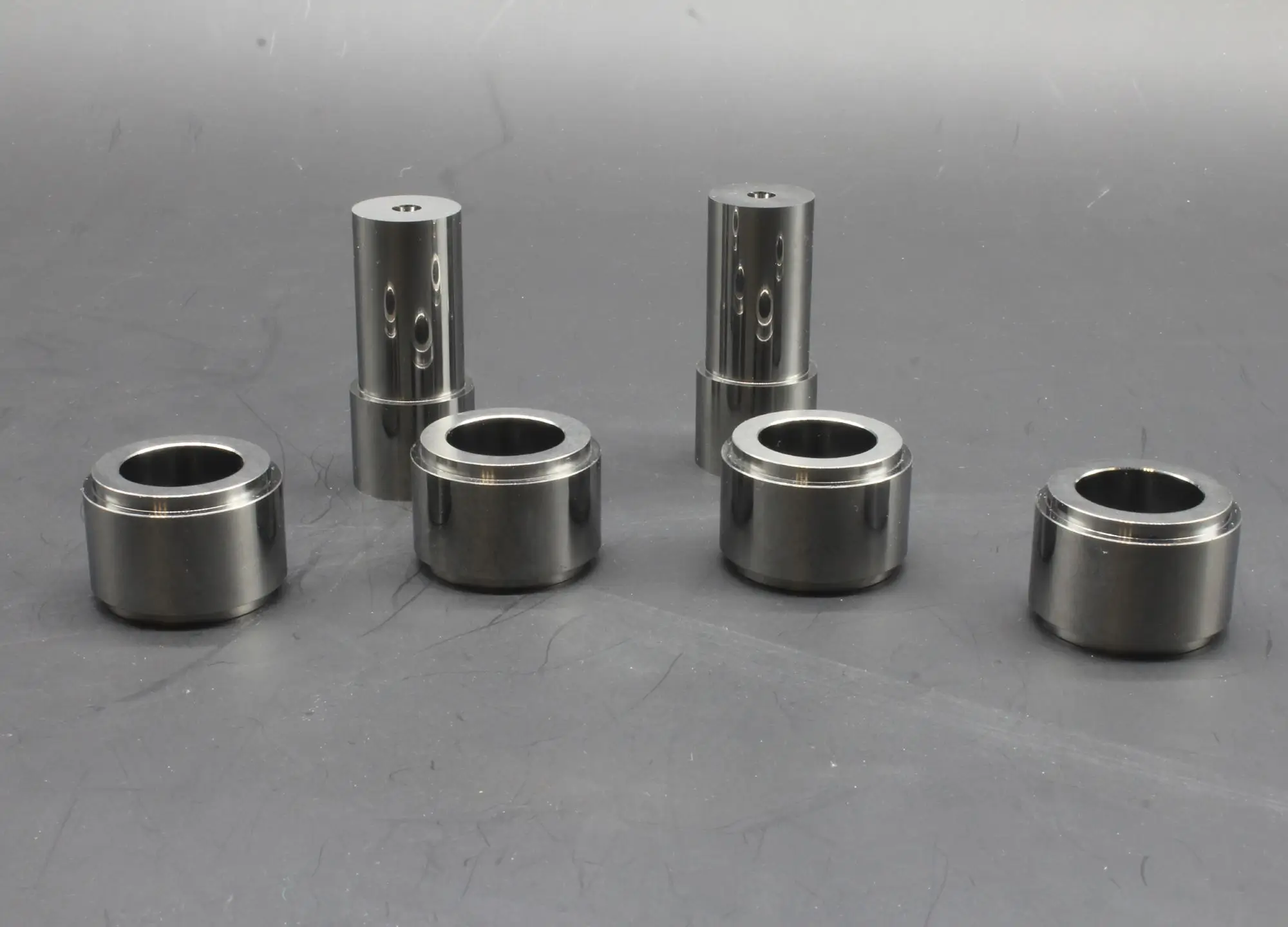

Deep Drawing and Forming Tools
Custom punches and dies for drawing, forming, bending, and shaped tooling applications.

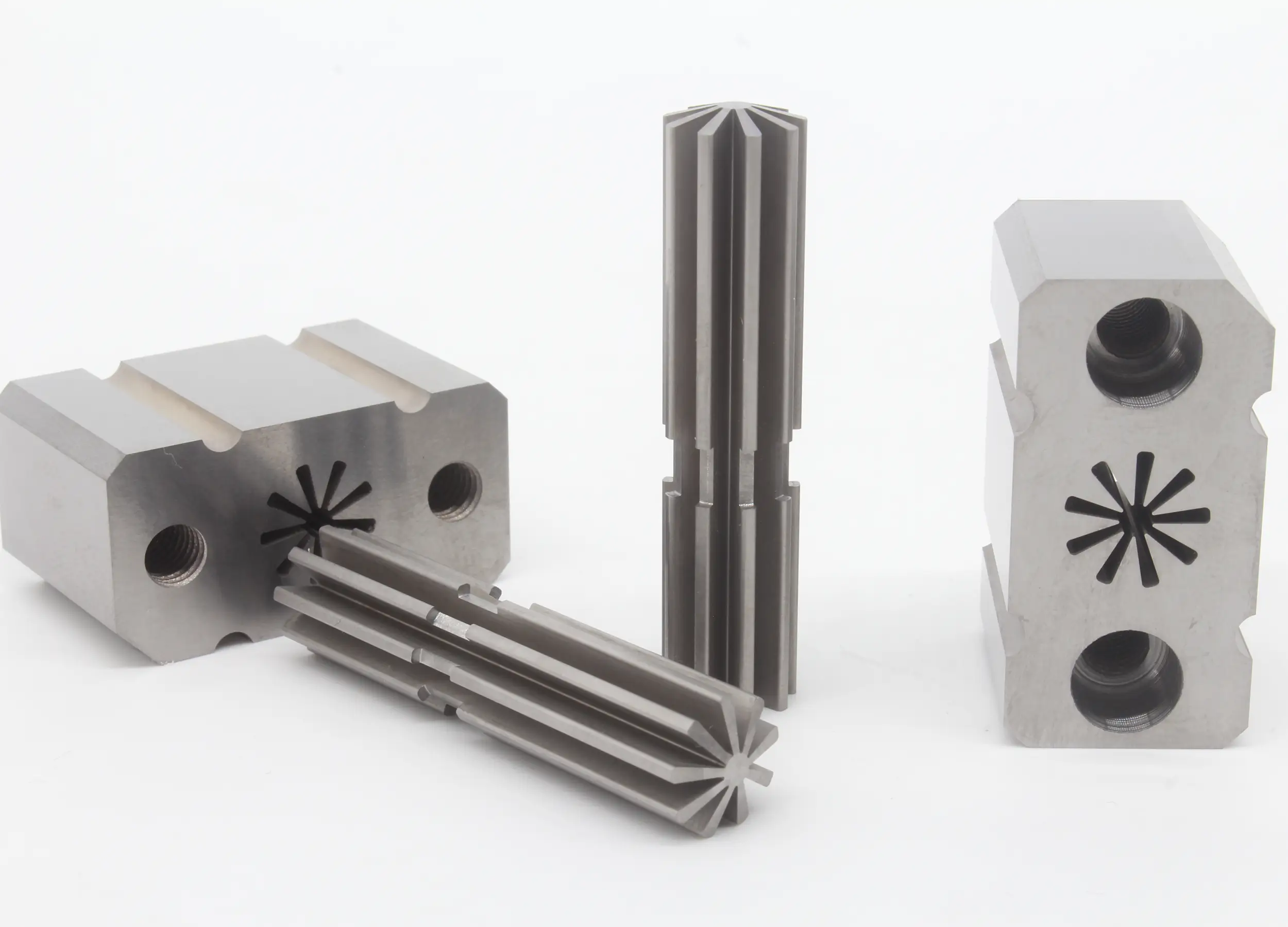

Custom Profile Shaped Punches
Non-standard punch profiles manufactured from drawing requirements and die clearance needs.

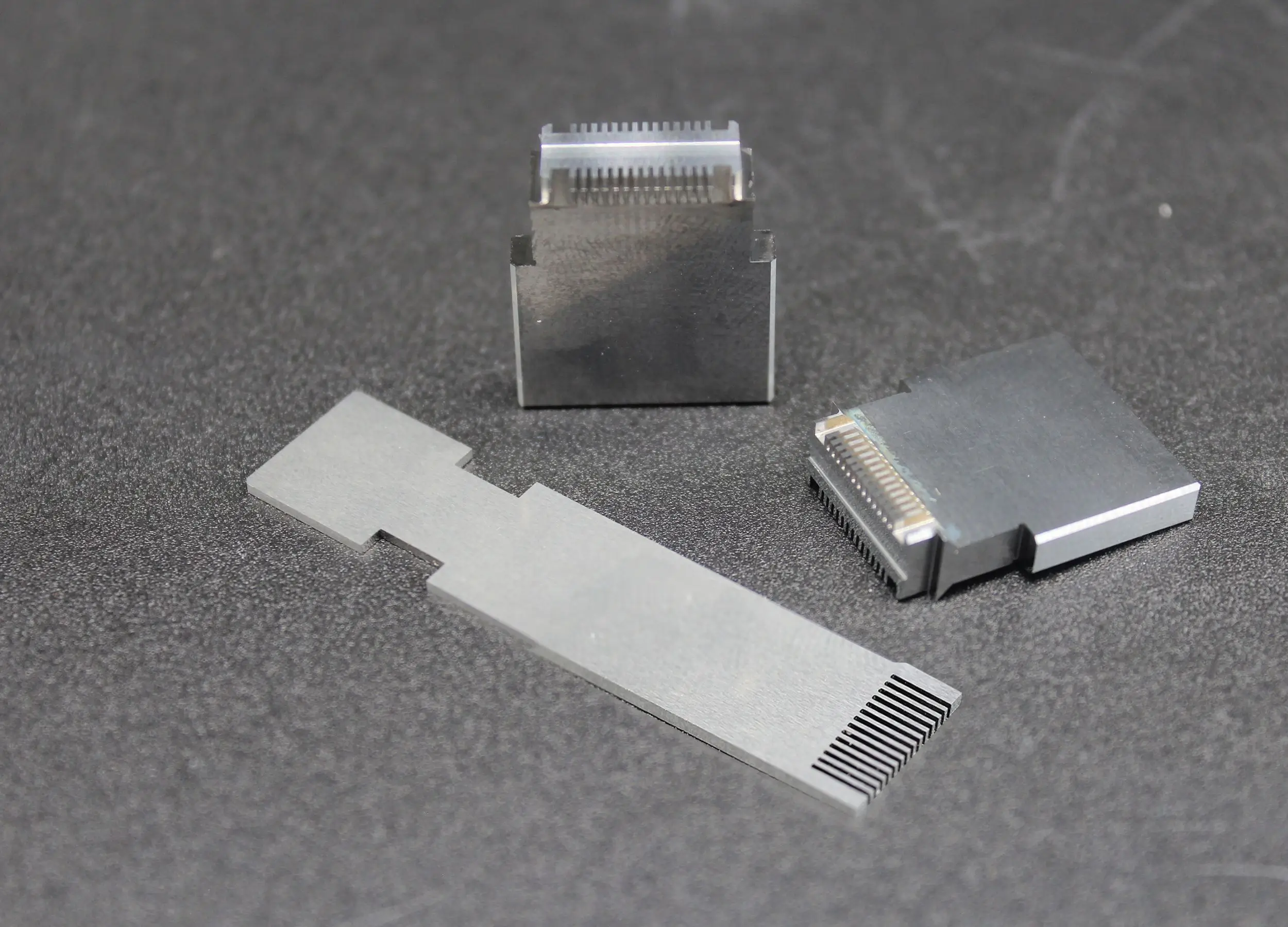

HSS and Tool Steel Punches
Tool steel, HSS, powder steel, and coated punch options for different working conditions.
TECHNICAL ROUTE
Compare punch tooling by material, geometry, and die application
- Strictly Confidential (NDA Supported)
A punch tooling decision is not based on the part name alone. Material grade, working sheet, punch profile, clearance, coating, expected wear, and die station all affect the manufacturing route and inspection focus. Use this comparison as a first technical check before engineering review.
| Material / Coating Type | Available Options |
|---|---|
| Tungsten Carbide Materials | FUJILLOY, EVERLOY, Sumitomo, GESAC, and Ceratizit. Specific grades: F10, F20, TFS06, VD12, EF10, KD20, MC20. |
| Tool Steel Materials | SKD11, SKH51, ASP23, and custom powdered tool steel options. |
| Coating Options | DLC, hard chrome, TiCN, and custom anti-galling coatings based on SPM. |
| Custom Selection | Based on your drawing, strip thickness, required tool life, and stamping conditions. |
VISUAL ROUTE
Visual examples for custom punch tooling
- Strictly Confidential (NDA Supported)
Use this block only when product photos, punch profiles, inspection images, or application examples help buyers recognize the right tooling direction.
Use this visual side when process photos communicate fit, finish, or inspection proof better than a specification table.
MATERIALS, PROCESSES, APPLICATIONS
Punch Tooling Types and Applications
Punch tooling requirements are easier to review when the part type, manufacturing route, and die application are separated. Use this section to identify the tooling direction before sending drawings, samples, or working-condition notes for engineering review.
Punch tooling types
- Custom precision punches
- Press punches and stamping punches
- Shaped and profile punches
- Piercing, blanking, and trimming punches
- Replacement punches from drawings or samples
Manufacturing routes
- Wire EDM cutting
- Precision grinding
- Profile grinding
- CNC machining support
- Surface finish control
Application routes
- Progressive stamping dies
- Press punch tooling
- Forming and drawing tools
- Blanking, piercing, and trimming stations
- Die buttons, inserts, and related components
INSPECTION PROOF
Quality checks for precision punch tooling
Precision punch tooling should be reviewed around the features that affect die performance: punch tip geometry, body dimensions, edge condition, material selection, coating fit, and drawing conformance. Final tolerance claims should be confirmed against the submitted drawing and working condition.
Punch tip geometry and body dimensions
Edge finish, clearance notes, and burr-risk review
Material, coating, and hardness confirmation when specified
Drawing conformance and revision traceability before shipment
Why We Provide Engineer-Reviewed Quotes
We do not rely on automated algorithms for custom tooling. Every submitted drawing is meticulously reviewed by our engineering team to assess machining feasibility, verify material selection, and identify potential tolerance risks. This ensures you receive a highly accurate price, a realistic lead time, and a manufacturing plan tailored for your punch and die projects.
RELATED MANUFACTURING SERVICES
Related manufacturing services for custom parts
These core services support many Sundi product pages. Use them to review the manufacturing route behind drawing-based components, precision tooling, and replacement parts.
Wire EDM
For precise cuts, narrow slots, internal profiles, and hard-material components that need controlled machining.
Precision Grinding
For parts that require flatness, tight fit, clean edges, or controlled surface finish after machining.
CNC Machining
For custom metal and plastic components, fixtures, plates, housings, and drawing-based replacement parts.
Tool & Die Making
For custom tooling, die components, production support, and parts that need engineering review before manufacturing.
FAQs
What information is needed to quote precision punch tooling?
Send the drawing or sample details, working material, punch material requirement, coating preference, tolerance notes, quantity, and the stamping or press tooling application. If the current tool has chipping, burr, fit, or wear issues, include that information for the engineering review.
Can Sundi make press punches from samples instead of drawings?
Samples can support an initial review when dimensions, material expectations, and working conditions are also provided. For production orders, a confirmed drawing or inspection reference is preferred so critical dimensions and revisions remain traceable.
Which materials are common for custom punch tooling?
Tool steel, high-speed steel, powder steel, and tungsten carbide are common options. The right choice depends on wear, impact load, edge condition, coating requirements, and expected production volume.
Does Sundi supply standard retail punch sets?
This page is focused on custom manufacturing and drawing-based punch tooling. Standard catalog punch sets, DIY tools, medical punches, and retail replacement kits are outside the intended scope unless a custom industrial drawing or specification is provided for review.
When should a request move to a more specific punch and die page?
If the main decision is carbide, HSS, a non-standard shape, forming, blanking, trimming, piercing, die buttons, or die inserts, the detailed comparison should sit on that more specific page. This page introduces the route and helps buyers choose the right next step.
